Give yourself more lighting options with the powerful, patented one-piece silicone lens of the mpower® Fascia 4". Its small footprint, multiple configurations, and tough design give it the flexibility to support operations at any scene or environment
Features
First extremely compact, tri-color line of perimeter lighting on the market
Design and mounting options allows for application nearly anywhere on a vehicle
Patented, one-piece silicone lens and optic design delivers advantages over conventional polycarbonate lenses
A smaller footprint with maximized candela output
Greater resistance to gravel pitting, scratching or cracking
Improved sealing to prevent water from entering light
Highly resistant to UV light and harsh chemicals—achieving greater clarity when exposed to sunlight

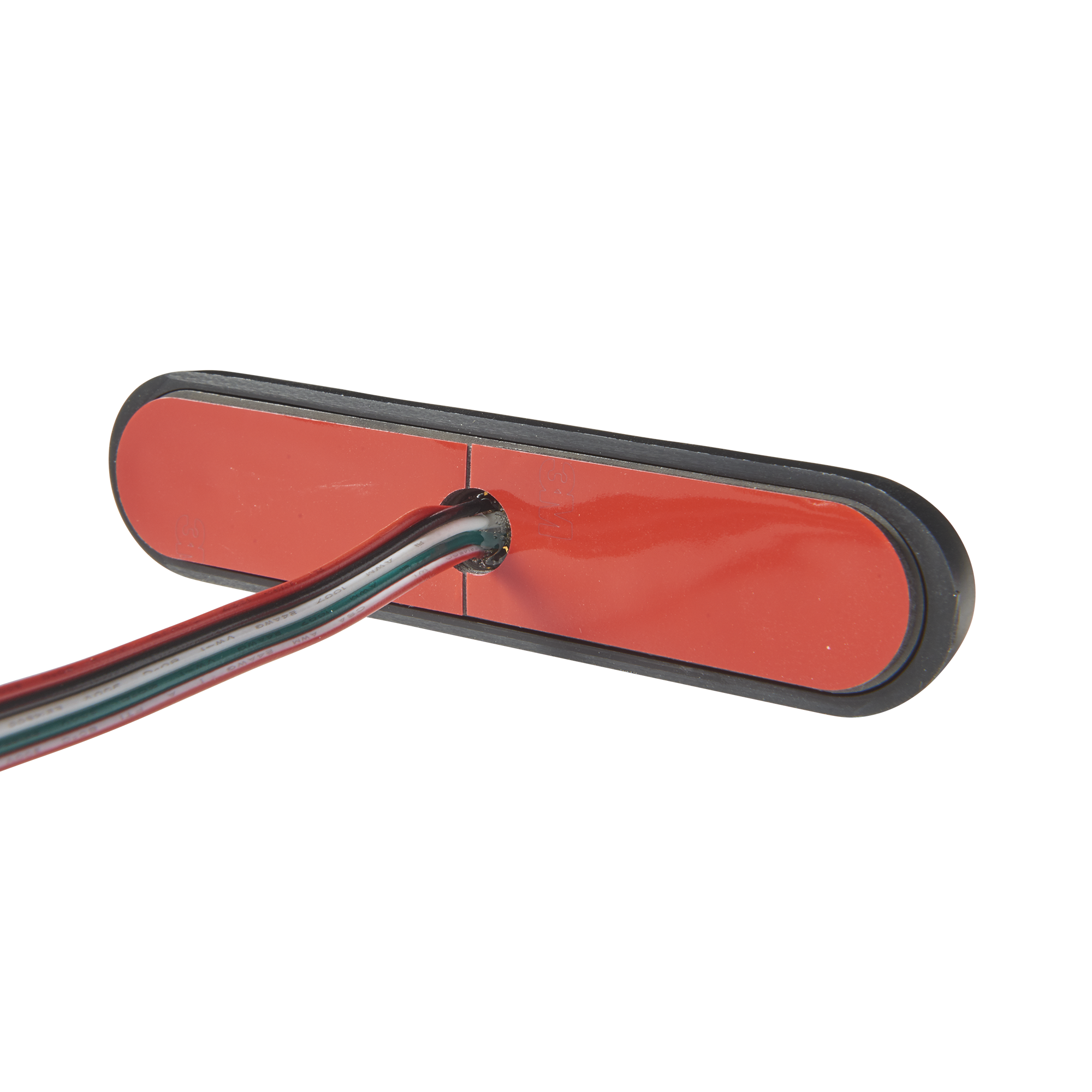

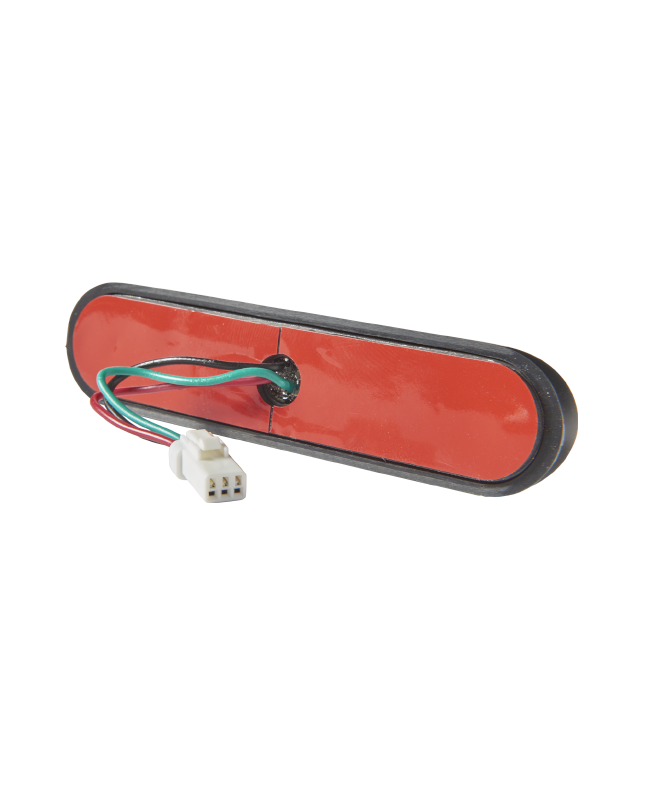

Choose to install via our 3-wire serialized communication network (power, ground and control) for increased efficiency, ease of deployment and advanced lighting control or as the traditional discrete wire control (5-wire) - For more information, refer to our Reference Guide
Tech Specs
Input Voltage Range
9-32 Vdc
Lens Color Options

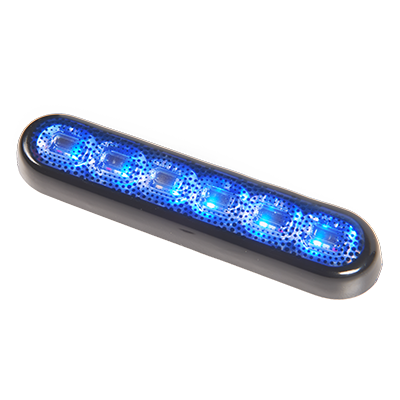

Clear, stealth
Flash Patterns
15
Light Sync
Up to 24 lightheads (Sync 2)
Dimensions
4.52"L x 0.92"H x 0.42"D (Screw Mount)
4.04"L x 0.92"H x 0.42"D (Threaded and Quick Mounts)
Mount Types

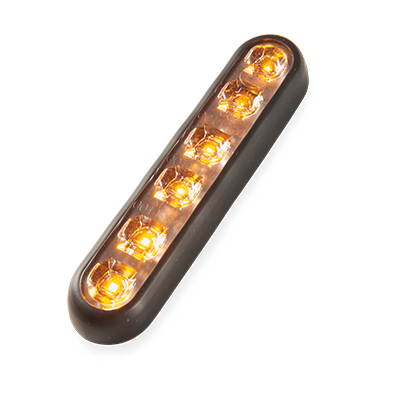

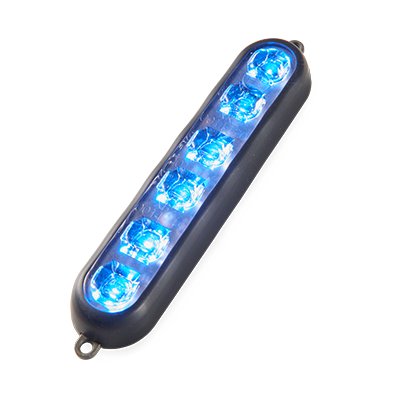

Quick, screw, stud
Certifications*
SAE J595, SAE J845, CA Title 13, ECE R65, ECE R10, NFPA 1900, KKK 1822-F
*Valid when using compliant patterns, color configurations and active modules
